A catalytic-distillation process for the production of t-amyl-methyl-ether (TAME) from methanol and isoamylenes was simulated by developing the process model as a combination of unit operations from HYSYS operations palette. Geometrical characteristics of catalytic-distillation column are those of an industrial pilot plant and the results of simulation were compared with experimental data. The experimentally determined reactions kinetics was applied in the model. UNIQUAC-UNIFAC model equations were selected for the vapour-liquid equilibrium.

Catalytic Distillation Process Simulation using HYSYS

This paper presents a theoretical study for the modelling of reactive distillation column operation in t-amyl-methyl-ether (TAME) synthesis. The simulation procedure is based on a mathematical model considering chemical reaction kinetics for the main reactions and the vapour-liquid equilibrium. Phase contact in the reaction zone is described with the back-flow cell model.



The problem statement in HYSYS.Process environment was made considering three zones for the catalytic distillation column (rectifying, reaction and stripping). Constructive and operational characteristics of the column are specified as a consequence of the parametric study: reaction zone position, feed position and reflux ratio, in order to obtain maximum yield for the transformation of C5 reactive olefins in the pilot plant. The simulation results are in good agreement with experimental data obtained in the experimental pilot plant at SNP PETROM, INCERP Ploiesti subsidiary. The quality of the results obtained in this paper is limited by the uncertainty introduced by the phase hydrodynamics in the reaction zone the phase equilibrium hypothesis.

Read more here...

Related Topic

Labels: ,

posted by Webworm, 11:33 PM | link | 0 Comments |

Wednesday, July 30, 2008

Display problem ? Click HERE

Recommended :
- Subscribe FREE - Processing Magazine
- Tips on Succession in FREE Subscription


On May 2, 2008 at 1010 hours, during plant start-up towards the end of plant turnaround, an incident occurred in a cooling water cell where a contractor suffered several cuts resulted multiple injuries on his forehead, fractured elbows and collar bone after being hit by the fan blade. The fan was energized without notice and aware of contractor still working inside the cooling water cell.


A TOTAL COMMUNICATION BREAKDOWN !!!


The root cause as identified :
  • Communication breakdown between different parties (the contractor working at the fan blade, safety watch and the personnel who activated the push button).
  • Insufficient understanding on the typical confine space safety requirements and the need to develop specific Job Safety Analysis (JSA) for the job.
  • Procedure not comprehensive to address safe work method while performing the job.
  • Inadequate lock-out tag out (LOTO) for in situ balancing trial run.


Recommended :
Subscribe FREE - Legal Aspects of Incident Investigation

Lessons Learnt:
a) Enhance communication and to physically reconfirm that nobody is in the confine space prior to start-up of any equipment

b) Provide refresher briefing to all operation and maintenance staff on the typical confine space and JSA requirements.

c) Review procedure
and include safe job method statement for in-situ balancing trial run.

d) Strengthened the LOTO mechanism for in-situ balancing trial run

e) Implement
key-interlocking system where fan will not be energized until key kept by contractor is released.


Related Post

Labels: ,

posted by Webworm, 1:50 PM | link | 0 Comments |

Tuesday, July 29, 2008

Display problem ? Click HERE

Recommended :
- Subscribe FREE - Processing Magazine
- Tips on Succession in FREE Subscription

Have you ever dream of studying engineering in Massachusetts Institute of Technology (MIT) ? Now you may have chance to learn from MIT for FREE. Amusing !

Since year 2000 MIT has started an initiative (called OpenCourseWare) to publish all their courses in the web for everybody to see, enjoy and learn. They have created a web site storing a the 1800 courses for public viewing, read, download, distribute, etc

All the content of courses includes lecture notes, laboratory exercises, tests and quizzes and the answers, and videos for some courses. The courses posted in this site are the real courses identical to the ones that are being offered at MIT campus.

Lecturer can download and use them for lecture purpose...
Student can read and learn...
Engineer can refresh their understanding and re-educate...



Knowledge is Own by Everyone
but Not Someone


Thanks to MIT to share...

Related Post

Labels: ,

posted by Webworm, 3:03 PM | link | 0 Comments |

Monday, July 28, 2008

Display problem ? Click HERE

Recommended :
Subscribe FREE - Processing Magazine

Liquid (operating temperature lower than maximum solar heating temperature) trapped in pressure vessel and piping and expose to solar heating, heat transfer into the liquid would cause liquid expansion. As liquid is “incompressible”, pressure can built up quickly and reach the maximum allowable working pressure (MAWP) of equipment and piping.

Pressure Vessel
For pressure vessel, the design code i.e. ASME Section 8 Div II always request a Pressure Relief Valve (PSV) for fire protection, thus this PSV would serve the thermal relief as well.

Piping
There is no such requirement for piping in general. However, API STD 521 2007 Addendum May 2008, section 5.14.1 (c) stated that hydraulic expansion due to solar heating on piping shall be assessed and checked if a pressure relief valve (PSV) is required. This section allows that a PSV may not required for thermal relief if proper administrative procedures and addition of signs stipulating the proper venting and draining procedures when shut-down and block-in are implemented. These action are acceptable and considered do not compromise the safety of personnel or equipment.

Common case
System under consideration for thermal relief consists of piping only (does not contain pressure vessels or heat exchangers), a pressure-relief device might not be required to protect piping from thermal expansion if :
  1. the piping is always contains a pocket of non-condensing vapour, such that it can never become liquid-full (even it is heated and compressed); OR
  2. the piping is in continuous use (i.e., not batch or semi-continuous use) and drained after being blocked-in using well supervised procedures or permits; OR
  3. the fluid temperature is greater than the maximum temperature expected from solar heating (the pipe temperature direct under solar heating can reached approximately 60 °C to 70 °C, it can be as high as 85 °C for certain area i.e. Middle east) and there are no other heat sources such as heat tracing; OR
  4. the estimated pressure rise from thermal expansion is within the design limits of the equipment or piping.
Some engineer may considered that insulates and buries pipe would avoid thermal relief. This is still an arguable statement. Insulation and buries would reduce heat inputs into the system, however, it does not completely avoid thermal relief. For example. an Liquefied Natural Gas (LNG) line from LNG plant to LNG storage may travel some distance. Although the line is insulated, the operating temperature of this can be as low as -140 degC to -150 degC. As compare to ambient temperature, there is still potential of heat leakage via insulated line and results vaporization.

Recommended :
Subscribe FREE -Pipeline & Gas Technology

With above statements and conditions, the piping within a plant is normally not equipped with PSV for thermal relief.

Special case
For some special case, a long piping i.e. piping between unit and/or plant may potentially experience overpressure caused by solar heating. A small Pressure Relief Valve is general provided for overpressure protection due solar heating.

The length and diameter of the piping and PSV with D-orifice sufficiently prevent overpressure protection are still remain a question.

The following studies will try to figure out the length and diameter limit for a D-orifice PSV.

Methodology
Method stipulated in API STD 521 2007 Addendum May 2008 section 5.14.3 will be used to calculate the pressure rise and liquid expansion rate (hence thermal relief rate).

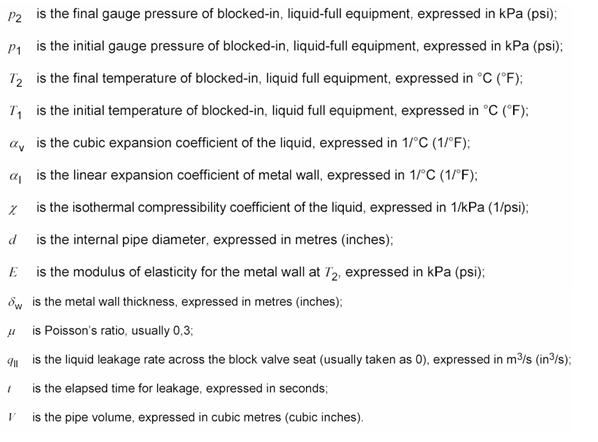

Pressure rise is estimated with following equation

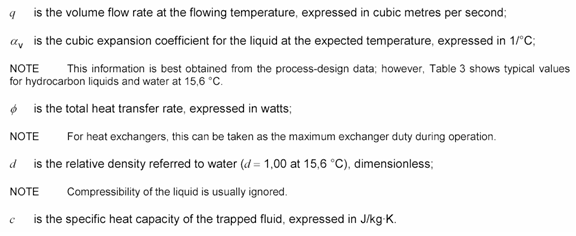

Where
Cubic expansion coefficient is estimated base on



Where



Isothermal compressibility coefficient is estimated base on :





Where



Liquid expansion rate is estimated base on :




Where
Refer to API STD 521 2007 Addendum May 2008 for formulation & definition Above has been modeled HYSYS for ease of calculation and data manipulation.

Assumption & Basis
Several assumption & basis have been considered :
  • Solar heating is potentially ranging from 0.79 to 1.04 kW/m2. Nevertheless, 1.15 kW/m2 has been considered in this study for conservativeness.
  • As it is difficult to ensure if total or partial piping surface area of the pipe is expose to solar heating, thus entire (100%) surface area of the pipe is assumed expose to solar heating.
  • It is assumed solar heating potential heat the piping and liquid to 60°C.
  • Design pressure of the piping is at 16 barg. It is considered the PSV will open at 16 barg.
  • It is considered that the fluid content and piping has been heated and pressure has built-up to 15.9 barg (0.1 bar below the PSV set pressure). This will potentially lead to maximum liquid relieving rate.
  • The studies have considered water(H2O), I-butane (iC4), hexane (C6), nonane (C9) and decane (C10)
  • For 150# Carbon Steel (CS),
  • Linear expansion coefficient is taken as 1.21 x 10-5 1/°C
  • Modulus of Elasticity is taken as 207 x 106 kPa
  • Wall thickness is taken as 6.35mm
Results

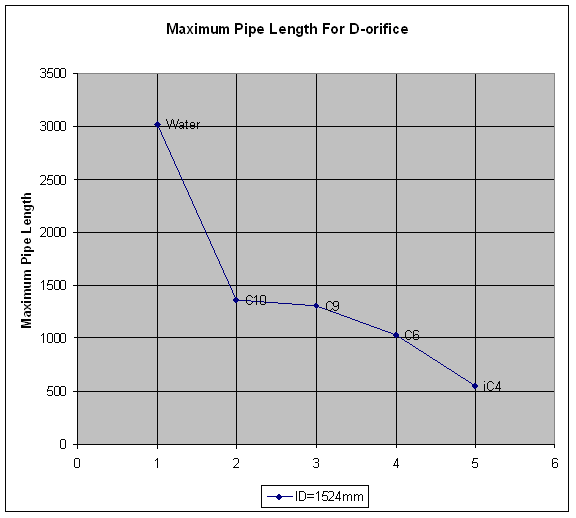

Refer to following figure.




For a pipe with ID of 1524mm, the maximum pipe length lead to flow limit of D-orifice are listed as follow :

Water - 3026 m
C10 - 1365 m
C9 - 1311 m
C6 - 1029m
iC4 - 556m

If a pipeline contain iC4 with length less than 556m, a D-orifice is sufficient to protect the pipeline from solar heating overpressure protection. If exceeded 556m, a E-orifice or 2 x D-orifice may be required.

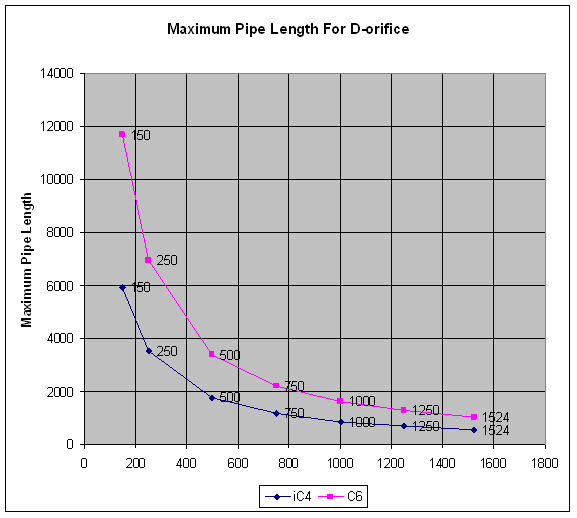

Refer to following figure




For a pipe containing iC4 (and C6 for second case), the maximum length for different pipe diameter are listed as follow :

ID - iC4 - C6
ID = 150mm - 5910 m - 11684 m
ID = 250mm - 3534 m - 6943 m
ID = 500mm - 1751 m - 3393 m
ID = 750mm - 1158 m - 2214 m
ID = 1000mm - 861 m - 1628 m
ID = 1250mm - 683 m - 1279 m
ID = 1524mm - 556 m - 1029 m

Any point below under curve implies a D-orifice is sufficient.

Concluding remark
Above briefly inform that only a small PSV (i.e D-orifice) is required for thermal relief for piping. Length limitation has been quickly established.

Related Post

Labels: ,
