Present of Hydrogen Sulfide (H2S) and Carbon Dioxide (CO2) in wet natural gas will cause severe metal stress cracking and corrosion possibly leads to severe leakage. Besides corrosion and stress cracking issue, these contaminant may need to be removed to meet gas specification. The removal of H2S from natural gas is common referred as Gas Sweetening.

One of the process of removal of H2S and CO2 is by solvent absorption where CO2 and H2S is react with solvent. There are many type of solvents available the market :

• Monoethanolamine (MEA)
• Diethanolamine (DEA)
• Diisopropanolamine (DIPA)
• Diglycolamine (DGA)
• Triethanolamine (TEA)
• Methyldiethanolamine (MDEA).
• Special solvent i.e. Activated / Accelerated MDEA
• Sterically Hindered Amines

• Physical solvent

1. react most rapid with acid gases
2. faster reaction with H2S compare to CO2
3. remove Co2 & H2S
4. non-selective between CO2 & H2S
5. low acid gas partial pressures
6. low absorber pressure
7. stringent acid gas specification : H2S lower than 4.0 ppmv
8. stringent acid gas specification : CO2 lower than 100 ppmv (low to moderate pressures)
9. irreversible reaction MEA with Carbonyl Sulfide (COS) & Carbon Disulfide (CS2) lead to MEA losses & contamination
10. typical pickup : 0.3-0.4 moles of acid gas/mole of MEA
11. typical solution concentration 10-20 wt%
12. higher concentration (more 20 wt%) increase CO2 loading in MEA. Potential high corrosion
13. high reaction heat lead to high energy consumption for stripping
14. Low vapor pressure ease vaporisation losses. Water wash unit to minimize losses.

1. general purposes
2. non-selective between CO2 & H2S
3. good for moderate pressure compare to MEA
4. typical pickup 0.2-0.8 of acid gas/mole of DEA
5. typical solution concentration 10-20 wt%
6. Special SNPA-DEA process solution concentration can be more than 30 wt%
7. Special SNPA-DEA process claimed to have 0.70 to 1 .0 mole of acid gas / mole of DEA
8. forms regenerable compound with COS and CS2
9. Slower reaction with COS & CS2 lead to less regenerable compound with these component
10. no significant amount of nonregenerable
11. irreversible reactions with CO2, forming corrosive degradation products & increase corrosiveness of amine solution

1. removal of H2S, CO2, COS and mercaptans
2. proprietary process
3. high affinity for absorption of aromatics, BTEX, olefins, and heavy hydrocarbons (potentially foaming & tail gas treatment for BTEX)
4. may be used at low pressure system i.e 8.6 barg
5. typical pickup 0.25-0.38 of acid gas/mole of DGA
6. typical solution concentration 50-60 wt%
7. low freezing point good for low climate application compare to MEA & DEA (link to typical concentration)

1. high selective to H2S at moderate to high pressure which provides added advantages i.e reduced solvent flow rates, smaller unit, etc.
2. H2s & CO2 may be partially removed from MDEA by flash. Less heating required during regeneration
3. typical solution concentration 30-50 wt%
4. typical pickup 0.2-0.8 of acid gas/mole of MDEA

1. Licensed solvent and process
2. Required licensing fees.
3. Some Lisensor mandatory licensee to purpose solvent from lisensor

4. much lower circulation rate
5. small unit
6. less heating & cooling
7. lower corrosion
8. Licensor : INEOS, Huntsman, Dow Chemical, UOP, SGS, Prosenat, BASF,

Labels: Acid Gas Removal, gas processing, Gas Sweethening

Recommended :
Subscribe FREE - Processing Magazine

Water hammer or pipeline surge is one of the phenomenon occur so quick (in mili second) without operator notice and aware that the surge has begun, progressed and ended. It some time lead to pipeline damage , leak and catastrophe.

Labels: hydrualic, Piping, Surge

System type 2 :
PSV discharging fluid will result :
- rain water dripping erosion-corrosion of equipment underneath
- severe noise issue
- hazard to operator

Typical system is steam, pressurized hot water, etc
May consider
- discharge to vertical pipe high enough to avoid steam cloud endanger operator
- discharge silencer to minimize noise dissipation
- larger pipe size to avoid liquid carry over
- drain to water seal pot to avoid steam break-through

See below image.

If you have more recommendation, let share...

Related Posts

• More Concerns Associated to PSV Discharge to ATM
• Concerns & Measures on PSV Discharge to ATM
• Few Concerns & Recommendations of PSV Discharge Tail pipe
• PSV Chaterring is Destructive...The ways to Prevent...
• Concerns & Recommendations on PSV INLET line
• Is PSV tail pipe & lateral at CHOKED (Mach no = 1) Accpetable ?Should we install Butterfly valve for Pressure Relief Valve (PSV) isolation ?

Labels: Overpressure Protection, Pressure Relief Device

Recommended :
- Subscribe FREE - Processing Magazine
- Tips on Succession in FREE Subscription

Earlier post in "Few Concerns & Recommendations of PSV Discharge Tail pipe", there are many points and requirements related to PSV discharge tail pipe have been discussed. This mainly focus on PSV discharge in proper designed close collection system. In the other post "Concerns & Measures on PSV Discharge to ATM", the focus is on those PSV discharge to ATM directly. Concern on creature and rain water entering the PSV tailpipe have been discussed. Nevertheless, detail analysis on the recommendations, they are mainly tackle the issues of creatures and rain water enter. However, there are other issues such as noise, hazards, etc which subject to fluid and flow. For example, PSV discharging steam may normally high noise level. It is hot and possess hazard to operator if drain hole is provided. This post will present more recommendations for this situation.

1. provide screen at discharge pipe. The screen hole shall NOT too small to limit relief flow
2. vertical pipe (end section) incline 45 deg to minimize rain water ingress
3. provide eccentric type expander at discharge pipe to minimize potential rain water flush rush and particle into PSV
4. provide a drain hole (recommend 6 mm) at low point of discharge pipe to drain any rain water ingress. ASME UG-135 andAPI RP 521 figure 1 have similar recommendation.
5. provide weathercap

There are two main issues needs to be managed :

1. Hazard to operator at drain hole
2. Noise at discharge pipe and drain hole
3. Erosion-Corrosion due to rain water dripping

See following image

Hazard to Operator at drain hole
PSV relief induce back pressure and partially push relieved fluid exit via the drain hole. The fluid (i.e. hot steam) could potentially discharge directly to operator.

Noise
As the fluid is relieving throught the pipe, the exit velocity will increase as the pressure is dropped to ATM. At the tip, the exit velocity may reach sonic velocity and high noise level is results. This potentially posses a hazard to operator. Similar happen to the drain hole but with much lower magnitude.

Erosion-Corrosion due to rain water dripping
Continuous rain water ingress and dripping directly on a equipment potentially cause erosion-corrosion of the equipment which potentially lead to unexpected hazard.

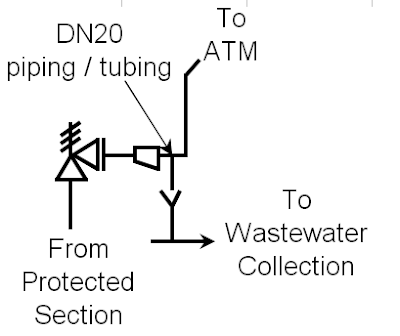

Knowing above issues, several measures are recommended. Further discussion in "Several Measures For PSV Tail Pipe Hazards".

Related Posts

• Concerns & Measures on PSV Discharge to ATM
• Few Concerns & Recommendations of PSV Discharge Tail pipe
• PSV Chaterring is Destructive...The ways to Prevent...
• Concerns & Recommendations on PSV INLET line
• Is PSV tail pipe & lateral at CHOKED (Mach no = 1) Accpetable ?Should we install Butterfly valve for Pressure Relief Valve (PSV) isolation ?

Labels: Overpressure Protection, Pressure Relief Device

- Subscribes to FREE Hydrocarbon Processing
- Tips on Succession in FREE Subscription

In gas processing and LNG production industry, heavy hydrocarbon (C5+) is removed from natural gas. One of the common way being used is cool natural gas to cryogenic temperature (-40 to -60 degC) so that C1 to C4 remain in gas phase while C5+ is knocked out as liquid phase. This is normally known as Condensate Recovery. Some natural gas is cooled to lower temperature (-70 to -90 degC) to remove C3+ and produce C3 for propylene related product. This is normally known as Propane Recovery. Similarly, the natural gas is cooled to temperature around -90 to -110 degC to remove C2+ and produce C2 for ethylene related product. This is normally known as Ethane Recovery. In LNG production, after the C2+ is removed from natural gas, it is further cooled to about -160 degC to separate inert gas (N2) and storage LNG at -160degC.

There are three important process to bring the natural gas temperature down to cryogenic temperature region :

• Mechanical Refrigeration (force cooling)
• Joule-Thompson (JT) valve pressure reduction
• Gas expansion with Turbo expander

Mechanical Refrigeration
The common refrigeration loop used are propane, ethane, methane, nitrogen, etc. These components are found in natural gas and it is normally extracted, purified and make-up to any losses in the refrigeration loop. As pure component is having contant heat of vaporization at particular pressure level, it would to low efficiency and high capex refrigeration system. Mixture of above component are used. Read more about refrigeration...

Joule Thompson (JT) valve
As fluid is forced through a valve with pressure reduction while minimising heat losses to surrounding, the fluid will experience isenthalpic process (constant enthalpy) and lead to temperature drop at low pressure level. This is a throttling process common called Joule-Thomson (JT) process and the valve used is JT valve. This phenomena is known as JT effect.
Mojority of gases are respecting JT rules except hydrogen, helium, neon , etc. Read more about JT...

Expansion Turbine
High pressure gas is allowed to flow through turboexpander or turbo-expander or expansion turbine (centrifugal or axial), works is produced and used to drive another equipment. This type of expansion process is an isentropic process (constant entropy) which could lead to very low temperature. Read more about Expansion Turbine...

Cryogenic Chilling Technique Video Clip
Following is a video clip presented the three processes to achieve cryogenic chilling.

(Click here to view from Browser - Recommended)

Related Topics

• LNG and Supply Chain
• Gas Processing, NGL Extraction & LPG Fractionation
• Typical Gas Processing Flow Scheme
• Typical Refinery Flow Scheme
• Floating Gas Refinery Unit
• Use Wobbe Index to Manage Fuel Quality to Gas Burner

Labels: gas processing, LNG

FREE Chemical Engineering Digital Issue for December 2008 has just been released !

Chemical Engineering magazine has just released December 2008 issue. If you are the subscriber of Chemical Engineering, you should have received similar notification.

***********************

Interesting articles for this month :

Capturing CO2
Efforts to find economical technology to reduce CO2 emissions are intensifying

Clean Up Your Act
Gone are the days of messy dust-collection maintenance, thanks to new, simpler-to-service systems

Heat Flux and Film Temperature In Fired Thermal-Fluid Heaters
The importance of these factors is often overlooked. Learn how to determine if you are overheating the fluid film in your system

Heat Transfer Fluids
Maintaining the System Use cost-effective techniques to find a solution for coke, sludge, high viscosity and deposits in your thermal fluid process

Fluid Flow
This one-page guide outlines flow calculations for both Newtonian and non-Newtonian fluids in laminar and turbulent flow

Bearing Housing Protector
Seals for Gearboxes In extreme environments, dual-face magnetic bearing housing seals will keep contamination out

Functions for Easier Curve Fitting
An overview of empirical relations that can be used to fit your data

Estimating Thermal Conductivity of Hydrocarbons
This new correlation can be helpful when measured data are not available

***********************

If you yet to be subscriber of Chemical Engineering, requested your FREE subscription via this link (click HERE). Prior to fill-up the form, read "Tips on Succession in FREE Subscription".

Related Post

• 3 Most Important & FREE Magazines That I Read...
• Non - Technical Quick References for a Chemical & Process Engineers
• R&D engineer, Academician and Student...Don't miss this !
• More You Share More You Learn
• Knowledge is Own by Everyone but Not Someone
• Tips on Succession in FREE Subscription

Labels: E-Doc, Education, Learning

We have been discussing many stuffs related to safety relief device in Chemical & Process Technology. We believe many points presented in this article have already been discussed and highlighted in depth in many previous post. However, in this article one of the interesting point is the "drip pan elbow" of safety relief valve protecting steam system.

The drip pan elbow is an elbow changes the outlet of the safety device from horizontal to vertical. at the corner of elbow, there is a connection which allow rain water and condensed steam drain to safe location. This is another alternative for Pressure Safety Valve relieve directly to ATM as discussed in "Concerns & Measures on PSV Discharge to ATM". See following image.

Second advantage for this "drip pan elbow" is it avoid PSV attach directly to the discharge vent piping as connecting vent pipe directly to PSV will place undue stress and weight on the valve body.

Another interesting point related to this "drip pan elbow" is relieved steam will not escape from the drip pan elbow if the vent line is sized correctly. This reduce the safety concern of steam leak through the drain line and poses hazard to personnel around the drain point.

Following is one of the recommended installation of PSV protecting steam system.

• Concerns & Measures on PSV Discharge to ATM
• Few Concerns & Recommendations of PSV Discharge Tail pipe
• PSV Chaterring is Destructive...The ways to Prevent...
• Concerns & Recommendations on PSV INLET line
• Is PSV tail pipe & lateral at CHOKED (Mach no = 1) Accpetable ?Should we install Butterfly valve for Pressure Relief Valve (PSV) isolation ?

Labels: Overpressure Protection, Pressure Relief Device

Recommended :
- Subscribe FREE - Chemical Engineering
- Tips on Succession in FREE Subscription

Earlier post in "Few Concerns & Recommendations of PSV Discharge Tail pipe", there are many points and requirements related to PSV discharge tail pipe have been discussed. For PSV discharging hazardous, flammable and toxic fluid shall be discharged and collected in network and disposed in good manner. For PSV discharge non-hazardous fluid i.e air, nitrogen, inert gases, steam, etc, it can be discharged to atmospheric directly.

Associate Problems
There are problems associated with direct discharge to ATM :
i) creatures (i.e. bird) build nest in the pipe potential block the discharge pipe
ii) rain water ingress results severe corrosion, seat damage, etc

Recommended Measures
Following are some recommendation to prevent above problems :
i) provide screen at discharge pipe. The screen hole shall NOT too small to limit relief flow
ii) vertical pipe (end section) incline 45 deg to minimize rain water ingress
iii) provide eccentric type discharge pipe to minimize potential rain water flush rush and particle into PSV
iv) provide a drain hole (recommend 6 mm) at low point of discharge pipe to drain any rain water ingress. ASME UG-135 andAPI RP 521 figure 1 have similar recommendation.

In the event PSV is discharging hazardous, toxic, flammable, etc fluid which potentially lead to explosive environment, thread to operator, etc, safety analysis shall be conducted to analyze the hazardous and necessary measures to avoid them. One of the recommendation is to provide vertical drain pipe instead of drain hole.

Another method may be considered is to provide a weather cap on the outlet of PSV discharge pipe. See following image.

It can avoid bird entrance and rain water ingress. The weather cap will act to release from pipe within 0.5 psi. Read more in "Yellow Jacket Weather Cap" and video clip.

Concerns
There are still some unclear concerns on this measure :
i) is local regulation and code allow ?
ii) if the discharge pipe is corroded, is the weather cap will release from pipe ?
iii) weather cap promote corrosion (crevice) underneath ?

What is your experience ?

More discussion in "More Concerns Associated to PSV Discharge to ATM".

Related Posts

• More Concerns Associated to PSV Discharge to ATM
• Few Concerns & Recommendations of PSV Discharge Tail pipe
• PSV Chaterring is Destructive...The ways to Prevent...
• Concerns & Recommendations on PSV INLET line
• Is PSV tail pipe & lateral at CHOKED (Mach no = 1) Accpetable ?Should we install Butterfly valve for Pressure Relief Valve (PSV) isolation ?

Labels: Overpressure Protection, Pressure Relief Device

Recommended :
- Subscribe FREE - Processing Magazine
- Tips on Succession in FREE Subscription

Pressure safety valve (PSV) or pressure relief valve (PRV) (let’s call it PSV in general) is commonly used to protect a pressure containment part i.e. vessel, column, etc from overpressure. It is one of the code approved type of overpressure protection devices. This type of device is reclosing type where the mechanism of devices is designed such that it will stop relief when the pressure is reduced to it reseat pressure. Besides PSV, rupture disc (RD) and rupture pin are also code approved type of overpressure devices. This type of device is non-reclosing type where it will continue to relief until all inventory is completely evacuated from the system or with operator intervention.

• Conventional spring loaded direct acting PSV

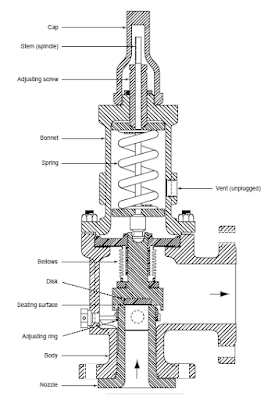

• Balanced-bellow and/or balanced-piston PSV
• Pilot operated PSV

Subscribes to FREE Hydrocarbon Processing

Pilot operated PSV
Compare to a balanced-bellow PSV, a balanced-piston PSV bonnet is extended with insertion block and balanced piston. This type of PSV is commonly used in system with fluid temperature potentially drop below sub-zero i.e. NGL recovery plant, LNG production plant, etc during relief and in case of leakage or passing.

Labels: Overpressure Protection, Pressure Relief Device

Recommended :
- Subscribe FREE - Processing Magazine
- Tips on Succession in FREE Subscription

Pressure vessel are commonly used in oil and gas, LNG, refining, petrochemical plant. These pressure may be designed to code such ASME, JIS, GB, AS, etc. It is subject to location of the plant, local regulation of applicability of these code. For example, if the plant is located in China, the pressure vessel may be designed to GB150 or ASME with neccessary adoptation (subject to changes from time to time). These codes mandated pressure vessel shall be protected from any overpressure scenarios by cenventional mechanical based pressure relief device i.e Pressure Relief Valve (PRV), Rupture disc (RD), etc. However, in some special applications and overpressure scenario, the use of pressure relief devices is impractical. In this post, will discuss a bit on those cases make pressure relief devices impractical and what may be considered.

Impractical cases
Following are some typical cases make conventional pressure relief devices impractical :

• Process reaction involve polymerization, crystallization, solidification, etc during normal operation. Historically the product partially/compeltely plug / block the pressure relief flow path. Some recommendations have been discussed in "Concerns & Recommendations on PSV INLET line".

• Relieved reactants in flare header potential polymerized, crystallized, solidified during relieving and partially / completely plug / block the discharge tail pipe, lateral, etc.

• Gassy or foamy system which possibly leads to exceesively large pressure relief device and flow path. Normally this kindly of gassy and foamy system, the prediction of relieving rate is difficult and complicated. This kindly of system may times required laboratory test and scall-up for relief load prediction.


• Rapid chemical reactions with expansion results quick pressure propagation and loss of containment prior to the relief device opening. Typical examples are water hammer, “hot spots,” decompositions, and internal fires.


• Rapid exothermic chemical reactions accelerate chain reaction and rapid expansion. Intenal pressure could build up exponentially leads to loss of containment prior to the relief device opening.

• Extremely large relief load due to rapid chemical reactions lead to impractical disposal system capacity


• Large relief load and impractical to design a disposal system to handle the relieved fluid

• The relieved fluid possibly created secondary hazardous to surrounding and damage to environment


For above cases, providing coenventional pressure relief device does not assist in reduction of overall risk and consequences. Thus, new measures of preventing overpressure are required to reduce the risk and consequences.

Recommended :
Subscribe FREE -Pipeline & Gas Technology

Application of Code Case 2211
Adoptation of ASME code case 2211 (1996, revised in 1999) by use of instrumented system to protect against overpressure. In this Code Case, ASME has adopted the opinion that, “a pressure vessel may be provided with overpressure protection by system design in lieu of a mechanical relief device,” with following conditions :

a) The vessel is not exclusively in air, water or steam service unless these services are critical to preventing the release of fluids that can result in safety or environmental hazards.

b) The decision to provide a vessel with overpressure protection by system design is the responsibility of the user. The manufacturer is responsible only for verifying that the user has specified overpressure protection by system design and for listing this code case on the data report.

c) The user shall ensure that the Maximum Allowable Working Pressure (MAWP) of the vessel is greater than the highest pressure that can reasonably be expected to be achieved by the system. The user shall conduct a detailed analysis of all credible overpressure scenarios. This analysis shall utilize an organized, systematic process safety analysis approach such as a hazards and operability (HAZOP) review, a failure modes, effects and criticality analysis (FMECA), fault tree analysis, event tree analysis, what-if analysis or other similar methodology.

d) The analysis described in (c) shall be conducted by an engineer(s) experienced in the applicable analysis methodology. The results of the analysis (including a qualitative or quantitative evaluation of reliability) shall be documented and signed by the individual in charge of the operation of the vessel. The documentation shall be made available to all authorities having jurisdiction at the site where the vessel will be installed. The user is cautioned that prior jurisdictional acceptance can be required.

e) The code case number shall be shown on the manufacturer’s data report and it shall be noted that prior jurisdictional acceptance may be required.

Above typically leads to the applicable of High Integrity Protection Systems (HIPS). One use this HIPS shall always ensure the Safety Integirty Level (SIL) of the protective system shall always equal or higher than what can be delivered by a pressure relief device. Read more in "Is Single PSV Protection Sufficient ?".

Related Posts

• Is Single PSV Protection Sufficient ?
• Concerns & Recommendations on PSV INLET line
• Few Concerns & Recommendations of PSV Discharge Tail pipe
• Where to Locate the PSV Inlet Nozzle ?
• Parallel Valve Technology Increase Safety & Reduce Nuisance Trips
• Dust Explosion Basic & Protection
• Requirements of SDV Bypass Pressurization Line

Labels: Overpressure Protection, Pressure Relief Device

Labels: E-Doc, Education, Learning
